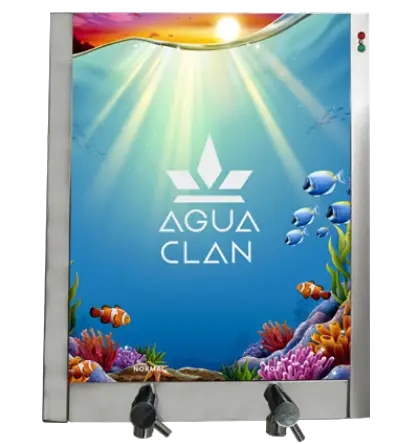

Domestic Normal & Hot
Domestic Normal & Hot
- Universal pump assembly provisions for all branded pumps (Eichen,Swann ,DMC ,Lexcru ,BNQS ,Kemflo).
- Installation is so easy with a free template of wall mounting provisions.
- Theme/customer based designs can be made of with MOQ 50nos.
- 10 lit of normal storage tank ; 2 lit of hot storage tank (optional).
- SS 304 of 0.8mm thickness with SS support clamps.
- Inbuilt with Provision of RO+UV+UF+ Alkaline combined.
- High Quality stainless steel taps.
- Available with SS202/304 housings.
- MODEL
- 800 - 1300 Sq. Ft.
- 2000 - 2500 Sq. Ft.
- 3000 - 4000 Sq. Ft.
Technical Specifications
Aguaclan - DOMCAB-NH
| Model | Aguaclan - DOMCAB-NH |
|---|---|
| DOMCAB-NH | QTY |
| Overall dimension | 500(H) x 400(L) x 265(W) are in mm. |
| Taps | Normal Antique Tap |
| Water Source | Good water / RO Water |
| Storage Type | Along With dispenser |
| Normal Water Storage Tank Capacity | 5 L |
| Hot Water Storage Tank Capacity | 1 L |
| Water Level Controller | Electronic - Micro Controller Based |
| Method of Level Sensing | Stainless Steel Probes |
| Heater Temperature Range | 50 - 75 C' |
| Make of Dispenser | AguaClan |
| Number of Faucets | 2 taps |
| MOC Frame | Stainless Steel 1.2 mm thickness. |
| Power Cord | 16 Amps Model. |
| Power Supply | 230-220 volts. |
| Heater Coil | 500 Watts |
| MOC - Housing | Stainless Steel 304 and 0.8/0.6mm thick |
| MOC – Faucets | Stainless Steel SS 304 |
| MOC –Storage Tank- Normal | Stainless Steel SS 304 and 0.8/0.6mm thick |
| Storage Tank - Hot | Stainless Steel SS 304 and 0.8/0.6mm thick |
| Plumbing | Customer scope with 1/2” Ball valve |
| Warranty | 6 months only for electrical parts |
| Branding | Yes |
